2.790.000đ 3.290.000đ
Liên hệ Khi thu cũ lên đời máy*
Chipset
Intel B760
Hỗ Trợ CPU
14th, 13th, and 12th generation Intel® compatible with LGA 1700 slot motherboard; CoRE ™, Pentium® And Saiyang® Processor
Bộ Nhớ
– Provide 2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot) – Supports DDR4-4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory – Supports Intel® Extreme Memory Profile (XMP) Memory Technology – Supports Dual Channel Memory Technology
Cổng SATA
– Supports 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices – M.2_1 slot: supports 2242/2260/2280 specification M.2 SSDs (PCIe 4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2280 specification M.2 SSDs (PCIe 4.0 x4, PCH channel) (*For the steps to create a RAID disk array, please refer to the official BIOS user guide of Colorful)
Cổng Kết Nối

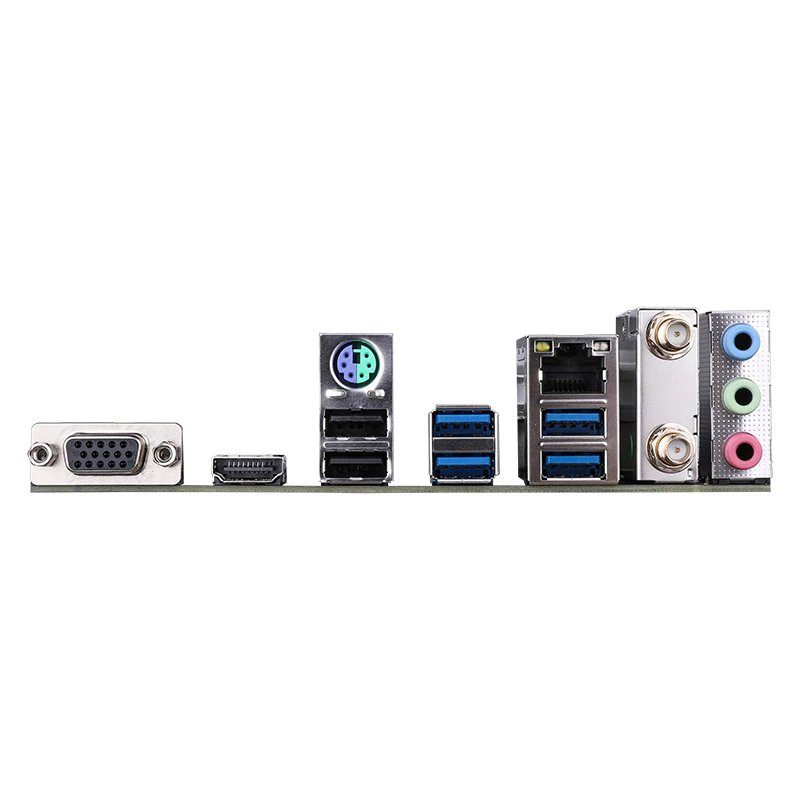

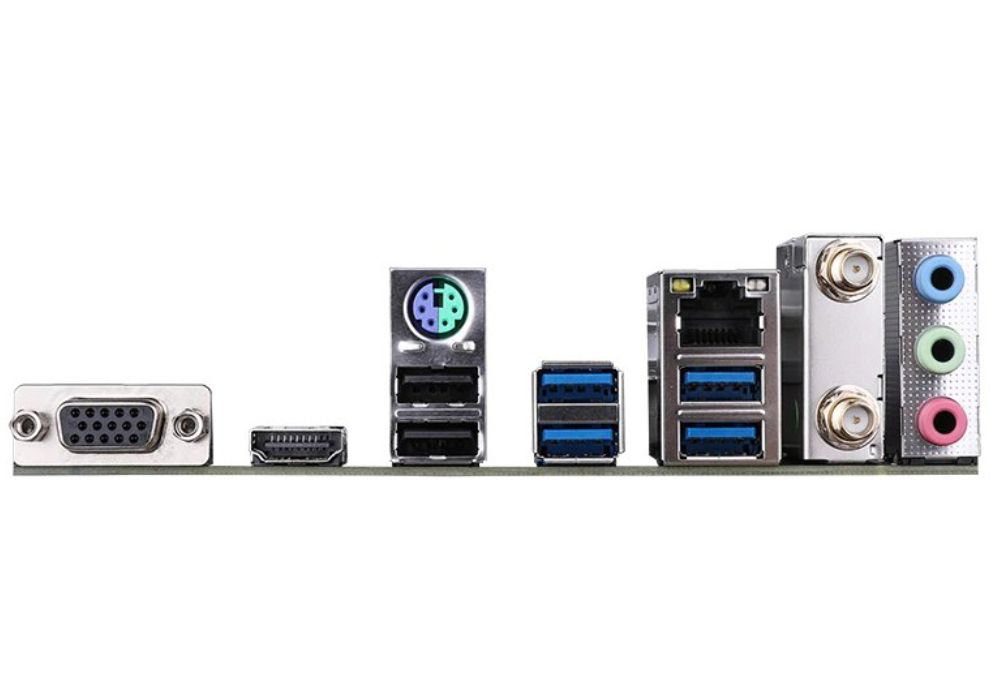

Rear I/O interfaces: – 1 PS/2 interface – 2 USB 2.0 interfaces – 4 USB 3.2 Gen 1 Type-A interfaces – 1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution – 1 VGA interface – 1 2.5G network interface – 2 Wi-Fi 6 antenna interfaces – 3 audio interfaces (audio input/output/microphone) Onboard device interfaces: – 1 CPU fan pin – 2 system fan pins – 1 water-cooled pump pin – 1 USB 2.0 pin expandable to 2 USB 2.0 Type-A interfaces – 1 USB 3.2 Gen 1 pin expandable to 2 USB 3.2 Gen 1 Type-A interfaces – 2 5V 3-pin ARGB pins – 1 12V 4-pin RGB pin – 1 front audio pin – 1 front panel pin – 1 speaker pin – 1 serial port pin – 1 clear CMOS jumper – 1 BIOS burner pin – 1 RGB light effect control jumper
Chưa có nội dung để hiển thị
| Chipset | Intel B760 |
| Hỗ Trợ CPU | 14th, 13th, and 12th generation Intel® compatible with LGA 1700 slot motherboard; CoRE ™, Pentium® And Saiyang® Processor |
| Bộ Nhớ | – Provide 2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot) – Supports DDR4-4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz memory – Supports Intel® Extreme Memory Profile (XMP) Memory Technology – Supports Dual Channel Memory Technology |
| Cổng SATA | – Supports 2 M.2 slots and 4 SATA 6Gb/s hard drive interfaces, supporting the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard drive devices – M.2_1 slot: supports 2242/2260/2280 specification M.2 SSDs (PCIe 4.0 x4, CPU channel) – M.2_2 slot: supports 2242/2280 specification M.2 SSDs (PCIe 4.0 x4, PCH channel) (*For the steps to create a RAID disk array, please refer to the official BIOS user guide of Colorful) |
| Cổng Kết Nối | Rear I/O interfaces: – 1 PS/2 interface – 2 USB 2.0 interfaces – 4 USB 3.2 Gen 1 Type-A interfaces – 1 HDMI 2.0 interface, supporting up to 4K 60Hz resolution – 1 VGA interface – 1 2.5G network interface – 2 Wi-Fi 6 antenna interfaces – 3 audio interfaces (audio input/output/microphone) Onboard device interfaces: – 1 CPU fan pin – 2 system fan pins – 1 water-cooled pump pin – 1 USB 2.0 pin expandable to 2 USB 2.0 Type-A interfaces – 1 USB 3.2 Gen 1 pin expandable to 2 USB 3.2 Gen 1 Type-A interfaces – 2 5V 3-pin ARGB pins – 1 12V 4-pin RGB pin – 1 front audio pin – 1 front panel pin – 1 speaker pin – 1 serial port pin – 1 clear CMOS jumper – 1 BIOS burner pin – 1 RGB light effect control jumper |
| Khe Mở Rộng | – 1 PCIe 4.0 x16 slot – 1 PCIe 3.0 x4 slot |
| BIOS | 128M UEFI, supports multiple languages |
| Quản Lý Nguồn | Support S3 S4, Network S5 wake-up, supports timed startup and incoming call startup |
| Giám Sát Phần Cứng | CPU fan speed controllable, system fan speed controllable, CPU temperature monitoring, system temperature monitoring, and voltage monitoring of each group |
| Mạng | RTL8125BG 2.5Gbit network card, AX101 WiFi 6 wireless network card, Bluetooth 5.2 |
| Âm Thanh | Realtek ALC897 high fidelity decoding chip, supporting 5.1 channels |
