1.899.000đ 2.899.000đ
Liên hệ Khi thu cũ lên đời máy*
CPU
AMD Socket AM4 support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset
AMD B550 Chipset
Bộ nhớ
2 DIMMs, Dual Channel DDR4-4600MHz (OC) Tối đa 64GB
Graphics
1 x HDMI 2.1, 1 x DVI-D – Requires Processor Graphics
Khe cắm mở rộng
1 x PCIe 3.0 x1 slot 1 x PCIe 4.0/3.0 x16 slot
B650
1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000 and 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
B650
1x PCI-E x16 slot • Supports x16 (For Ryzen™ 7000 Series processors) • Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors) • Supports x4 (For Ryzen™ 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
A520
1 x PCI-E X16 Gen3 x PCI-E GEN 1 x PCI-E X1
INTEL Z790
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
INTEL Z790
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
INTEL B760
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
INTEL B760
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to (From CPU)PCI_E2 Gen PCIe 3.0 supports up to (From Chipset)
Intel H610 Chipset
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1
INTEL Z490
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Intel® H510 Chipset
2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
B760
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Z690
3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset
Chưa có nội dung để hiển thị

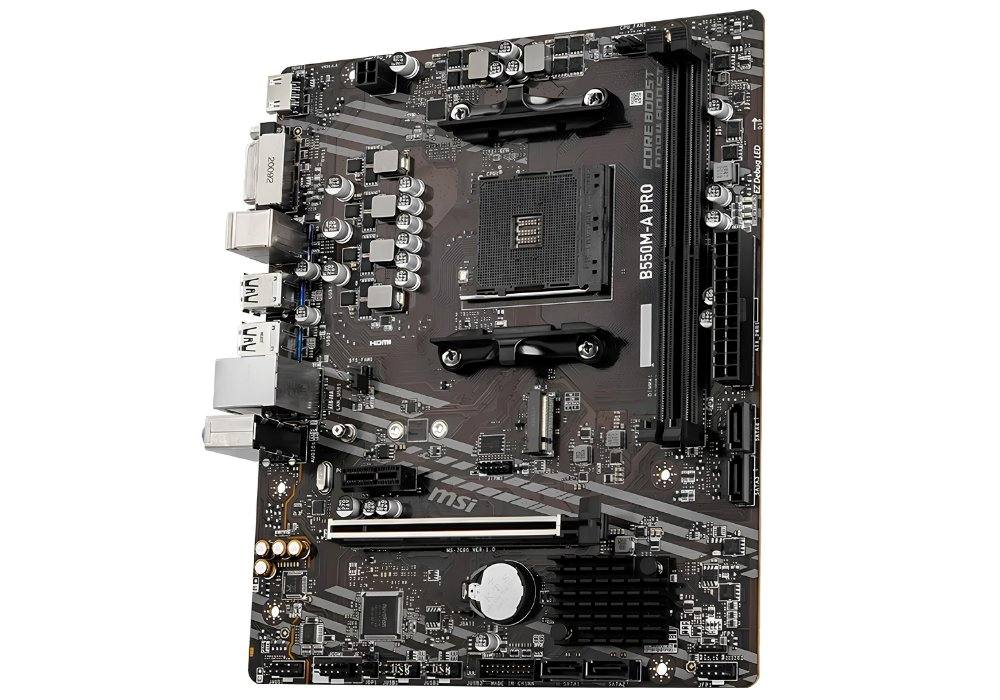

| CPU | AMD Socket AM4 support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors |
| Chipset | AMD B550 Chipset |
| Bộ nhớ | 2 DIMMs, Dual Channel DDR4-4600MHz (OC) Tối đa 64GB |
| Graphics | 1 x HDMI 2.1, 1 x DVI-D – Requires Processor Graphics |
| Khe cắm mở rộng | 1 x PCIe 3.0 x1 slot 1 x PCIe 4.0/3.0 x16 slot |
| Lưu trữ | 1 x M.2 Gen4 x4 slot 4 x SATA 6Gb/s ports |
| Ethernet | Realtek® RTL8111H Gigabit LAN |
| Wireless & Bluetooth | N/A |
| Cổng USB | 6 x USB 3.2 Gen 1 5Gbps (Type-A) 6 x USB 2.0 |
| Các cổng nội bộ khác | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 xTPM module connector 1 x Clear CMOS jumper |
| Âm thanh | Realtek® ALC892 Codec 7.1-Channel High Definition Audio |
| Tản nhiệt | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors |
| Lắp đặt | 8 lỗ lắp |
| Hệ điều hành | Windows® 10 64-bit |
| Dạng thiết kế | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
